FINISH
/CLEAR

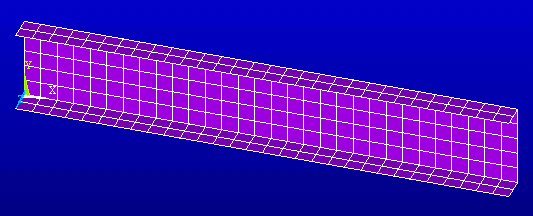

/TITLE, C6X8.2 Section Cantilever Beam
/UNITS, BIN
D = 6 ! Depth
BF = 1.92 ! Flange width
TW = 0.2 ! Thickness of web
TF = 0.3125 ! Thickness of flange
L = 36 ! Length
E = 30E6 ! Young's modulus
NU = 0.3 ! Poisson's Ratio
P = 2400 ! Load
SZ = 1.2 ! Element size
/PREP7
ET, 1, SHELL63
MP, EX, 1, E
MP, NUXY, 1, NU
R, 1, TW
R, 2, TF
/VIEW,, 1, 2, 3
K, 1, 0, 0, BF
K, 2, 0, 0, 0
K, 3, 0, D, 0
K, 4, 0, D, BF
K, 5, L, 0, BF
K, 6, L, 0, 0
K, 7, L, D, 0
K, 8, L, D, BF
A, 1, 2, 6, 5
A, 2, 3, 7, 6
A, 4, 3, 7, 8
ESIZE, SZ
MSHAPE, 0, 2D
MSHKEY, 1
REAL, 1
AMESH, 2
REAL, 2
AMESH, 1, 3, 2
FINISH
